Milkotester Ltd
MASTER PRO TOUCH
MASTER PRO TOUCH
Couldn't load pickup availability

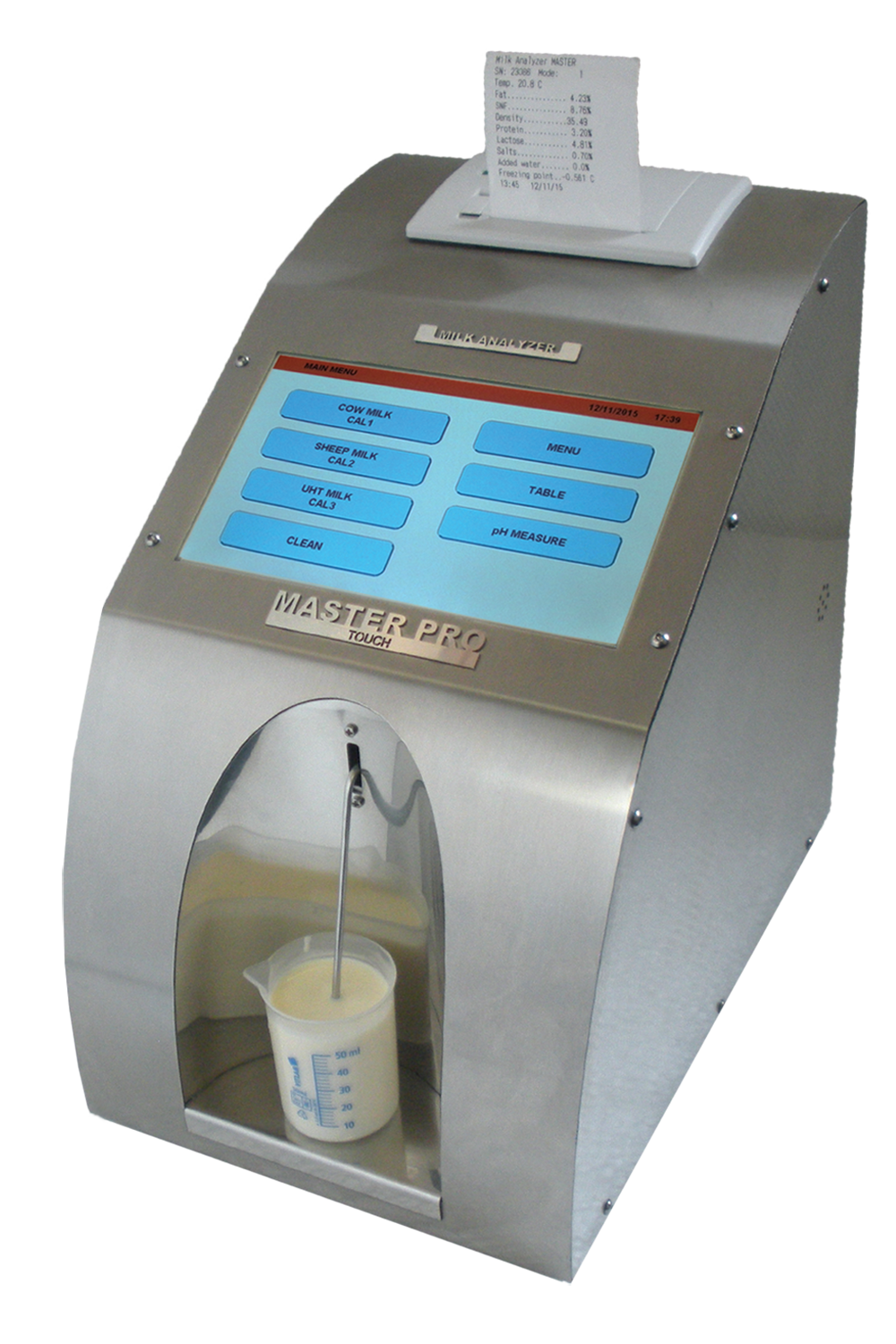

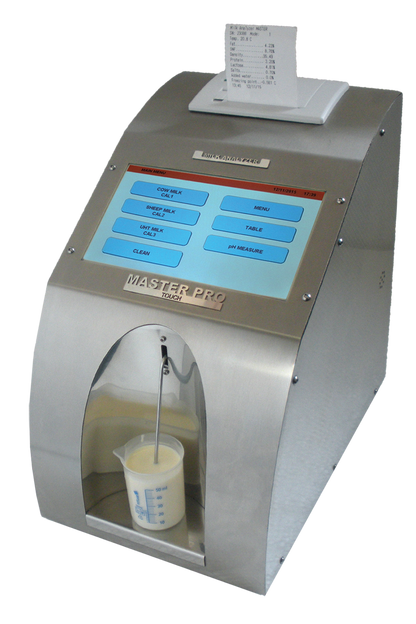

MASTER PRO TOUCH – the world’s first ultrasonic milk analyzer with touch screen. Innovative technology ensures easy and efficient operation with the device. Master Pro Touch is new generation milk analyzer equipped with 7’ touch screen graphic display. Fast and easy overview of the records saved in electronic table directly on the analyzers’ display, without using a PC.Data transfer option to PC in Microsoft Excel is available for Master Pro Touch.Fast and easy input of parameters for calibration and corrections directly on the buttons as well as on-screen keypad for entering customers and liters data. 7‘ display allows the sample measurement results to be visible on the screen until next analysis is in process.Available options (by customers’ request only) – conductivity, built-in printer, USB flash memory stick, second peristaltic pump for automatic cleaning, PH, accumulator, weighting scales, remote display.Three calibration channels are available. Standard calibrations for milk analyzer MASTER PRO TOUCH are for Cow milk, Sheep milk, UHT. The analyzer can be calibrated also for: Buffalo milk, Pasteurized milk, Goat milk, Mixed milk, Skimmed milk, Whey and other types of milk and milk derivatives.
Technical Overview |
|
Sample Volume |
20 ml. |
Sample Speed |
60/40/30sec. |
Sample Temperature |
5˚ C – ˚40 C |
Humidity |
0 – 80℅ RH |
Interface |
RS 232 Port |
Interface |
USB |
AC Power Supply |
95 – 250 V |
DC Power Supply |
12 V |
Dimensions |
280/285/193mm |
Weight |
3.4kg. |
BROCHURE
INSTRUCTION MANUAL
AVAILABLE OPTION
MILK DATA BANK - software download
MORE INFO
- Ultrasonic Technology
- Very small quantity of milk needed
- Memory for 500 measurements
- pH (option)
- Self calibration without computer
- Low power consumption
- 1 x RS232 connection
- 1 x USB connection to PC
- ESC POS Printer Support
- Built-in keypad
- 7‘ displayPeristaltic pump
- Scale (option)
- One year full waranty
- Clock (time and date)
- No acids or other chemicals are used
Measuring Ranges |
||
Fat |
0℅ -35℅ option to 45℅ |
±0.06℅ |
Solids-Non-Fat (SNF) |
3℅ - 40℅ |
±0.15℅ |
Density |
1000 – 1160 kg/m3 |
±0.3kg/m3 |
Protein |
2℅ - 15℅ |
±0.15℅ |
Lactose |
0.01℅ - 20℅ |
±0.2℅ |
Salts |
0.4℅ - 1.5℅ |
±0.05℅ |
Add Water |
0℅ - 70℅ |
±3℅ |
Freezing Point |
-0.4˚C to -0.7˚C |
±0.005˚C |
Sample Temperature |
5˚C-40˚C |
±1˚C |
*Conductivity |
2 – 14mS/cm |
±0.05mS/cm |
*pH |
0 - 14 |
±0.05 |
BUY MORE

USB Flash drive support
All results from the tests are saved on Flash drive. They can be reviewed later with Excel program.

pH
In-built electronics fir measuring. 1pc pH probe and 1pc stand for pH probe

In-built printer
Ability to print all test results.

Conductivity
It helps detecting milk with false composition. It detects the addition of salt in milk.

Master Pro Touch - P2
Two peristaltic pumps for measurement and automatic cleaning.

Platform scales
In-built electronics + measuring platform. Direct connection to the analyzer. Review of the measured kilograms.
In-built Batteries
We can integrate batteris in the milk analyzer. They will allow the analyzer to function for 8 hours without any other power supply.
